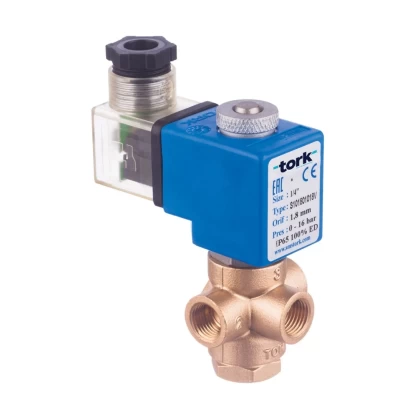

S10 SERIES GENERAL PURPOSE SOLENOID VALVES

GENERAL FEATURES

SERIES ______________________S10 (Air, water, gas application)

CONNECTION SIZE __________1/8"... 3" DN80 ... DN200

BODY MATERIAL ____________ Brass (Core Tube, Plunger: Stainless Steel

DIAPHRAGM MATERIAL______NBR (On request EPDM and VITON)

WORKING PRESSURE ________O... 16 bar/0.5... 16 bar / 0.5... 40 bar

WORKING TEMPERATURE____ -10°C... 80°C

CONNECTION________________BSP (NPT on request), Flanged (DN80...DN200)

POSITION____________________Normally Closed (N.C.) / Normally Open (N.O.)

COIL VOLTAGE_______________220V, 110V, 24V, 12V, AC/DC

PROTECTION CLASS_________IP 65, IP 68, Ex-proof Coil
