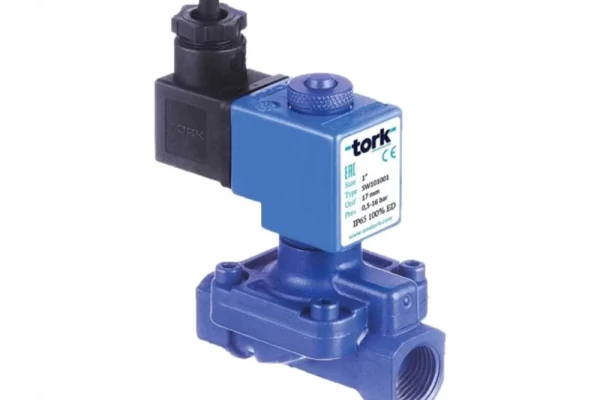

SW1010 SERIES
(THE SOLENOID VALVE IS PTFE COATED FOR THE AGGRESSIVE ENVIRONMENT WITH IP68 COIL WHICH CAN WORK UNDERWATER)
GENERAL FEATURES
SERIES__________________SW10 (Air, water, gas applications)
CONNECTION SIZE_________1/8” ... 3” - DN80 ... DN200
BODY MATERIAL___________PTFE coated brass (Core Tube, Plunger: PTFE coated stainless steel)
DIAPHRAGM MATERIAL______NBR (EPDM and VITON on request)
WORKING PRESSURE________0 ... 16 bar / 0.5 ... 16 bar / 0.5 ... 40 bar
WORKING TEMPERATURE_____-10˚C ... 80˚C
CONNECTION______________BSP (NPT on request), Flanged (DN80...DN200)
POSITION________________Normally Closed (N.C.) / Normally Open (N.O.)
COIL VOLTAGE____________220V, 110V, 24VAC-DC, 12VAC-DC
PROTECTION CLASS________IP 68
